Miniature Filtered Orifice Restrictors

Miniature filtered orifice restrictors are used to provide flow control and low pressure drop in pneumatic applications. Universal Power Conversion is fully stocked on polysulfone miniature orifice restrictors from top pneumatic manufacturers Air Logic, O’Keefe Controls and other trusted brands. Our knowledgeable staff is ready to help find the pneumatic filtered orifice restrictors you need and can provide quick delivery on orders of all sizes. If we don’t have the component you need in stock, we will quickly source the part required for your applications through our manufacturer network. Filtered orifice restrictors feature a stainless steel filter screen, and have a maximum supply of 100 PSI. Filtered Orifice Restrictors contain an orifice restrictor and a stainless filter which are encased in the same housing.

Browse the product selection below to place an order or request a quote. If you have questions regarding our other pneumatic components, please contact our experts for help selecting a miniature filtered orifice restrictor.

Filtered Orifice Restrictor Features

Air Logic inline filters are precision molded from polysulfone and feature an encased molded housing and barbs to ensure a tight connection and withstand long operation cycles. The wire screen in these filtered orifice restrictors is constructed of stainless steel and features a Dutch weave for improved strength and rigidity during filtration processes. The Dutch weave design also increases the pressure resistance of the filter. These filters are disposable and easy to replace. Our selection of filtered orifice restrictors are available in ten color coded sizes to help you more easily identify components in your pneumatic system.

Pneumatic Filtered Orifice Restrictor Advantages

Orifices are formed from polysulfone and are designed for inline installation. Additional features include:
  • Precision Molded
  • Compact Design
  • Low Pressure Drop
  • Maximum Supply of 100 PSI

Pneumatic Filtered Orifice Restrictor Specifications

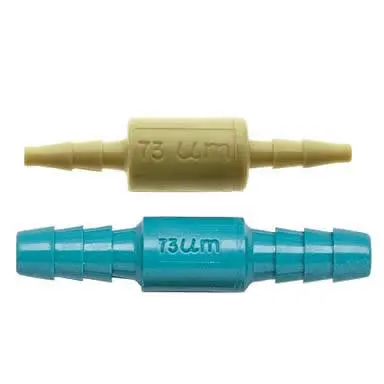

Filtered Orifice Restrictors from Universal Power Conversion are designed for use in pneumatic control circuits. They feature a 316 stainless steel filter and are encased in a molded polysulfone housing in ten different color-coded options. Orifice sizes range from 0.004” to 0.030” with barbs for 1/16” or 1/8” I.D. flexible tubing. Option of filters in 5, 43 or 73 micron. . The orifices are precision molded of polysulfone and are held to flow tolerances of ± 4%.

Request a quote on UPC’s selection of filtered orifice restrictors or view our selection of compatible pneumatic components and accessories from Air LogicO’Keefe Controls and other top manufacturers.

Why Choose Universal Power Conversion, Inc.

At Universal Power Conversion, we are proud to offer an extensive catalog covering components from over 25 industry leading brands and manufacturers. We offer exceptional customer service and technical assistance to ensure your systems and components perform optimally. Our comprehensive service offering allows us to provide fast turnaround and shipping on all in-stock items. We offer additional customization and assembly services upon request.

Universal Power Conversion is Minority Woman-Owned Small Business holding SBA 8(a) Business Development Program and NWBOC WOSB certifications for our success and dedication to quality.

Contact UPC Today for Miniature Inline Filters

Request a quote on the miniature filtered orifice restrictors that meet your requirements or Contact UPC for more information on our compressed air components.
