Air Pressure Regulator


Pneumatic Pressure Regulators & Precision Regulators

A pneumatic pressure regulator is a control valve that reduces the input pressure to a desired pressure as its output pressure in compressed-air systems regardless of variations in input pressure or output flow. Universal Power Conversion offers a range of miniature, economy, compact, standard, hi-flow and pilot-operated regulators to meet a range of service needs. We can fill quick turnaround times of regular and precision regulators from Air Logic, AirTAC, Pneumadyne, Tsunami and other leading manufacturers. UPC’s regulators provide quick response and accurate pressure regulation for the most demanding industrial air preparation applications.

As an SBA 8(a) certified pneumatic component supplier, we are dedicated to finding the parts required for your pneumatic system. Learn about our air pressure regulators and precision regulators by category below or Contact us today to discuss your air preparation needs.

Air Pressure Regulators

We carry relieving air pressure regulators and non-Reliving regulators along with relieving air pressure regulators with reverse flow in most required sizes. Standard AirTAC GAR Series regulators feature a circular round pressure gauge which, with clip and magnifier, is used to save installation space. These regulators feature a pressed-in self-locking mechanism that can prevent the abnormal movement of the set pressure caused by external interference. The balanced designed is adopted for the pressure adjustment mechanism. Brackets are optional for installation.

AirTAC Air Pressure Regulator Specifications

Standard air pressure regulator features (not including regulators with reverse flow):
  • Port Size: 1/8” to 1”
  • Pressure Range: 0.05—0.9MPa(7-130psi)
  • Max Pressure: 1.5MPA(215psi)
  • Temperature Range: -20°to -70°C
  • Weight: 170g to 1390g

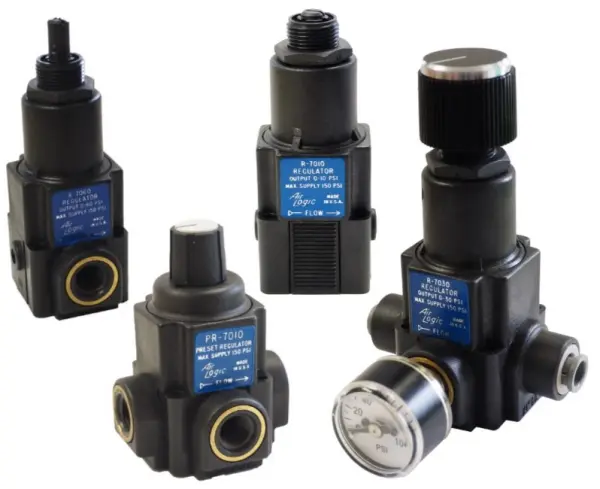

Precision Air Pressure Regulators

Precision Regulators have a 20 turn adjustment range from 0.5 to 100 PSI. Maximum supply is 150 PSI. Four adjustment ranges are available: 10 PSI, 30 PSI, 60 PSI and 100 PSI. The modular dovetail design allows the regulator to be used individually or assembled into a modular combination of pneumatic components.
AirTAC Precision Regulators are easy to install and feature high pressure regulation and rapid response. AirTAC precision regulators feature repeatability within +/-0.5% F.S. and port sizes include ¼” - ½” NPT. Additional features include:
  • Pressure ranges:
    • Lower Pressure: .005 - 0.2MPa
    • Medium Pressure: 1.5 - 58 PSI
    • High Pressure: 1.5 - 116 PSI
  • Sensitivity:  Within 0.2% F.S.
Preset Precision Regulators are designed to produce a precise preset output pressure. Ideal for instrumental and industrial applications, they are preset to the desired output pressure of 0.5-40 PSI using 100 PSI supply. Recommended filtration is 5 Micron.
Manifold Mounted Regulators are designed to mount directly on pneumatic circuit boards or manifold subplates. They are available in two models:
  • The Adjustable Precision Regulator has a 20-turn adjustment range from .5 to 100 PSI. Maximum supply is 150 PSI. Four adjustment ranges are available: 10 PSI, 30 PSI, 60 PSI, and 100 PSI.
  • The Preset Precision Regulator is designed to produce a precise output pressure that is preset at the factory, 0.5 to 40 PSI using a 100 PSI supply.
Preset Manifold Mounted Regulators are designed to mount directly on pneumatic circuit boards or manifold subplates. The port connections for the supply and output are located on the base of the manifold mounted series regulator. The Preset Precision Regulator is designed to produce a precise output pressure that is preset at the factory, 0.5 to 40 PSI using a 100 PSI supply.

High Performance Air Pressure Regulators from Top Manufacturers

UPC offers top quality air pressure regulators and precision regulators from the industry’s leading manufacturers. Customization options are available upon request. While our inventory is always growing to meet unique industry requirements, some manufacturers we supply are:

Contact Universal Power Conversion Today for Air Preparation Components

Request a quote on air filters, air lubricators, and air regulators, or contact Universal Power Conversion to learn more.
