Right Angle Manifold

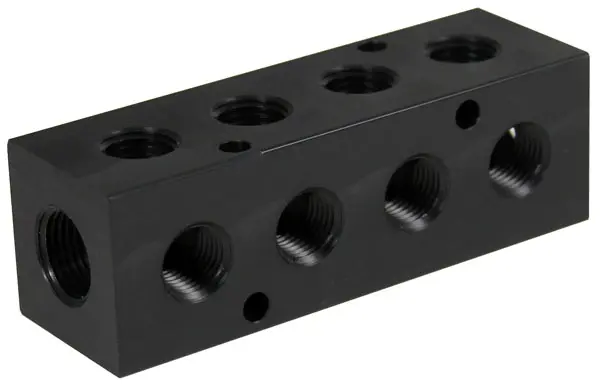

Right angle manifolds feature ports at 90-degree angles and provide a junction for the distribution of gases and liquids in pneumatic systems. Universal Power Conversion is fully stocked on black anodized aluminum right angle manifolds with up to 10 port stations. As a premier supplier of Polyconn components, we can supply low and high volume orders of right angle manifolds under quick turnaround times. Right angle manifold sizes range from 1/8 NPT, 1/4 NPT or 3/8 NPT output ports and 1/4 NPT, 3/8 NPT or 1/2 NPT inlet ports. Choose one of the following options below to see a complete listing of our in-stock products or contact a UPC expert and let us help find the right pneumatic cylinder for your application.

Right Angle Manifold Specifications & Advantages

Polyconn manifolds provide a convenient junction for the distribution of gases or fluids in control systems or in networks that require multiple branching.
Black Anodized Aluminum Body: For improved corrosion resistance in systems exposed to hazardous conditions. Brass, stainless steel, nylon and polypropylene bodies available.
Multiple Size Options: 2 to 10 stations to fit most pneumatic system sizes. Choose from 1/8 NPT, 1/4 NPT or 3/8 NPT output ports and 1/4 NPT, 3/8 NPT or 1/2 NPT inlet ports.
High Performance: Capacity up to 1,000 PSI for air, and up to 3,000 PSI for non-shock hydraulic
ISO 9001:2000 Certified: High quality manufacturing for effective pneumatic products.

Right Angle Manifold Applications

UPC’s selection of Polyconn wide port spaced manifolds are designed for low and medium pressure pipe line connections. These manifolds can be used with brass, copper or iron pipe. Aluminum and black anodized models are available for applications requiring corrosion resistant components. Common uses include:
  • Water
  • Grease
  • Fuels
  • LP & Natural Gas
  • Refrigeration
  • Instrumentation
  • Low Pressure Systems

Why Choose Universal Power Conversion, Inc.

At Universal Power Conversion, we are proud to offer an extensive catalog covering components from over 25 industry leading brands and manufacturers. We offer exceptional customer service and technical assistance to ensure your systems and components perform optimally. Our comprehensive service offering allows us to provide fast turnaround and shipping on all in-stock items. We offer additional customization and assembly services upon request.
Universal Power Conversion is Minority Woman-Owned Small Business holding SBA 8(a) Business Development Program and NWBOC WOSB certifications for our success and dedication to quality.

Contact Universal Power Conversion for Right Angle Manifolds

Contact UPC for more information about our right angle manifolds or Request a quote today.
