Pneumatic Needle Valves

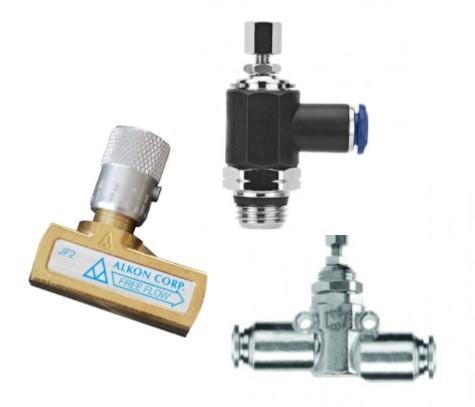

Needle Valves control flow in both directions of a pneumatic circuit. The bi-directional design allows metered Airflow in one direction and free flow in the reverse direction. Most pneumatic needle valves have an arrow indicating the free flow direction.

Universal Power Conversion stocks pneumatic needle valves from Alpha/Aignep, Alkon, and several other trusted brands. Available with brass or nickel-plated brass bodies for corrosion resistance, these flow control valves withstand challenging environments. We also offer needle vales with various flow rates and input and output port sizes to accommodate your pneumatic system requirements. Get fast shipping on all our in-stock pneumatic flow control valves!

90° Needle Valve

90° Needle Valve Female x Male Thread

In-Line Needle Valve Tube x M Thread

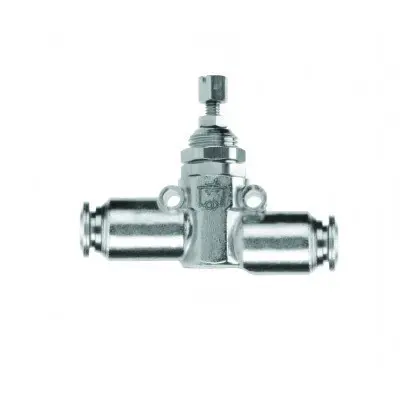

In-Line Needle Valve Tube x Tube

In-Line Needle Vavle

Pneumatic Flow Control Valves

Needle valves come with an array of port sizes and thread types to meet your needs. Select a pneumatic flow control valve category to see a full listing of options and product specs.

90˚ Needle Valves: Nickel-plated brass with a knob or slotted adjustment. 1/8 to 1/2” or 3mm-14mm OD tube and a 1/8 to ½” UNV, 10-32 UNF, or M5 thread.
90˚ Needle Valves with Female x Male Threads: Nickel-plated brass body with a knob or slotted adjustment. FM and M threads from 1/8 to 3/8” UNV or 10-32 UNF.
In-Line Needle Valves with Tube x M Threads: Nickel-plated brass body with knob adjustment. 1/4 or 3/8” OD tubes and 1/4 or 3/8” UNV port.
In-Line Needle Valves Tube x Tube: Nickel-plated brass body with knob adjustment and 1/4 or 3/8” OD tubes.
In-Line Needle Valves: Brass or nickel-plated brass body with knob adjustment. NPT ports from 1/8 to 1” available.

Selection Criteria for Needle Valves

Choosing the correct valve is critical in regulating air flow in your pneumatic system. Always consider the following when browsing needle valve options:

Valve Size: Choosing the correct size is essential for leak-free operation. Make sure you look at the size and connection type to ensure the best fit.
Pressure Rating: Air flows through pneumatic systems at high but varying pressures. Always determine your system’s pressure requirements before selecting a pneumatic flow control valve.
Operating Environment: Applications involving high temperatures or chemical exposure require corrosion-resistant housing materials made for extreme environments.

Universal Power Conversion provides high-quality flow control solutions for all industries and applications. Request a quote on the Flow Control Valves you need, or contact UPC to request products from a specific manufacturer.
