Aftercooler
Aftercooler

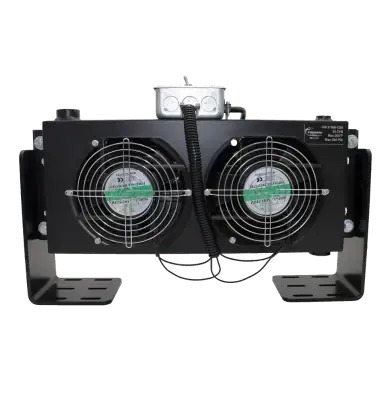

The Tsunami Aftercooler delivers exceptional air cooling, critical for applications sensitive to moisture contamination. By significantly reducing the moisture load entering downstream dryers, the Aftercooler optimizes dryer performance, extends equipment life, and minimizes costly downtime.
Required: Install a water separator to remove all condensed moisture downstream.
Specifications:
Max flow rate: 50 CFM
Approach: Up to 20°F
Temperature pressure drop: <1 PSI
Max inlet pressure: 290 PSI
Max inlet temperature: 300°F
Power required: 120 VAC
Wall Mounted
The Tsunami Aftercooler delivers exceptional air cooling, critical for applications sensitive to moisture contamination. By significantly reducing the moisture load entering downstream dryers, the Aftercooler optimizes dryer performance, extends equipment life, and minimizes costly downtime.
Required: Install a water separator to remove all condensed moisture downstream.Specifications:
Max flow rate: 50 CFM
Approach: Up to 20°F
Temperature pressure drop: <1 PSI
Max inlet pressure: 290 PSI
Max inlet temperature: 300°F
Power required: 120 VAC
Wall Mounted
Aftercooler Files
Features:
- 6 configuration options for optimal performance
- Wall-mounting
- High volume fan
- Bar & plate heat exchanger
- Pre-cools hot compressed air before entering dryers
- Cools and condenses water vapor into liquid moisture for easy removal
- Ability to choose dew point based on configuration
- Increase floor and operating space with wall-mount
- Extend the life your compressed air system
- Improve operating performance
- Reduce downtime
