Pressure Gauges for Industrial & OEM Applications
Type of Gauges Available:
-

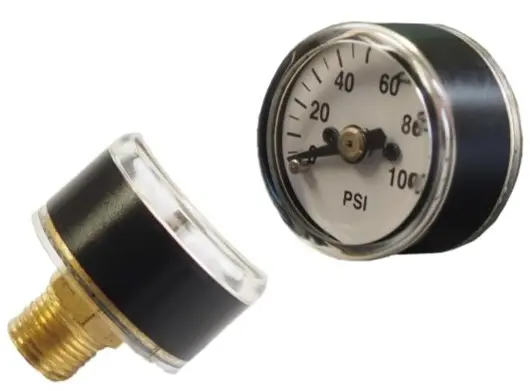

Miniature Pressure Gauges (10 Series)
Available in Center Back Mount only. These miniature gauges are designed for use on compressors, mini regulators, and pneumatic applications where space is at a premium.
-

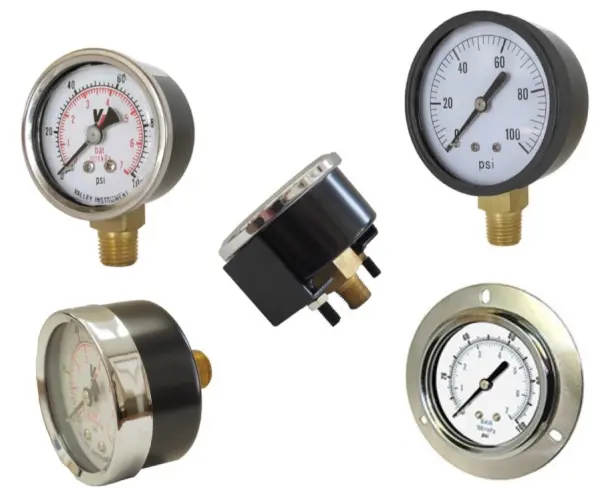

General Service & Utility Gauges (20 and 30 Series)
ABS Style gauges with dial sizes from 1” to 4.0”. They have mounting options of Stem, Back, Front Flange, and U-Clamp, with brass 1/8” or 1/4” NPT Male Ports, and a Dual Scale Dial.
-

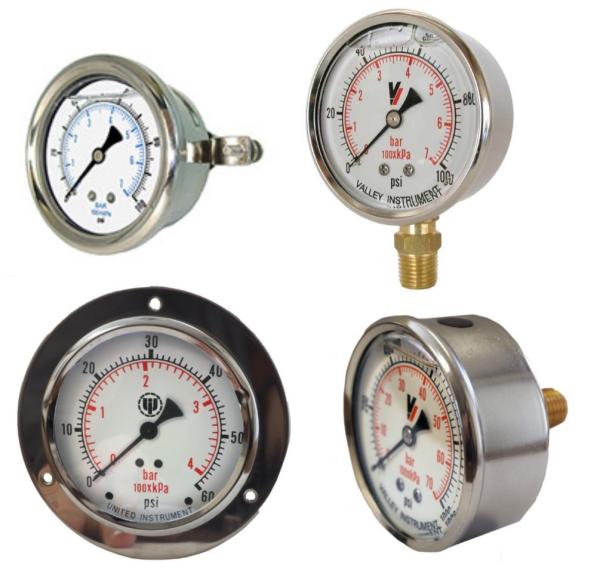

Stainless Steel OEM & Industrial Gauges (40 & 41 Series)
Stainless Steel gauges in 1.5” to 4”. They have mounting options of Stem, Back, Front Flange, and U-Clamp mounts, with brass 1/8”, 1/4” and ½” NPT Male Ports and a Dual Scale Dial. Stainless Steel Industrial gauges in 2.5” with mounting options of Stem, Back, Front Flange, and U-Clamp mounts, with brass 1/4” NPT Male Ports and a Single Scale Dial.
-

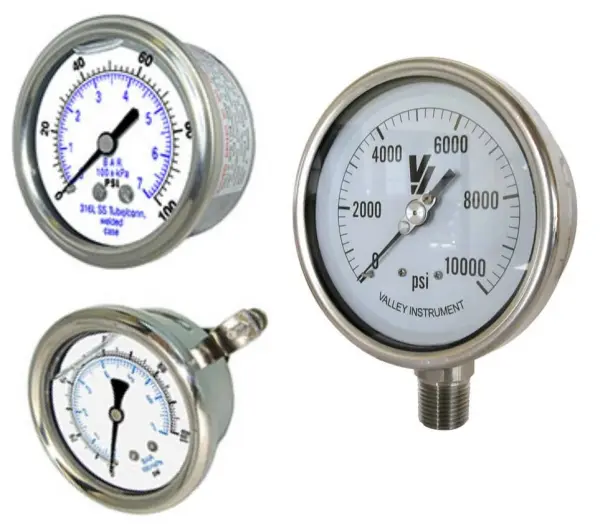

Heavy-Duty Stainless Steel Gauges (54 & 58 Series)
Stainless Steel Industrial gauges in 2.5” and 4” Face with mounting options of Stem, Back, Front Flange, and U-Clamp mounts, with Stainless Steel 1/4” NPT Male Ports. Single Scale Dial. Stainless/Welded Gauge is Stainless Steel, 4” Face that has a Stem mount with port connection at ½” NPT Male. Single Scale Dial.
-

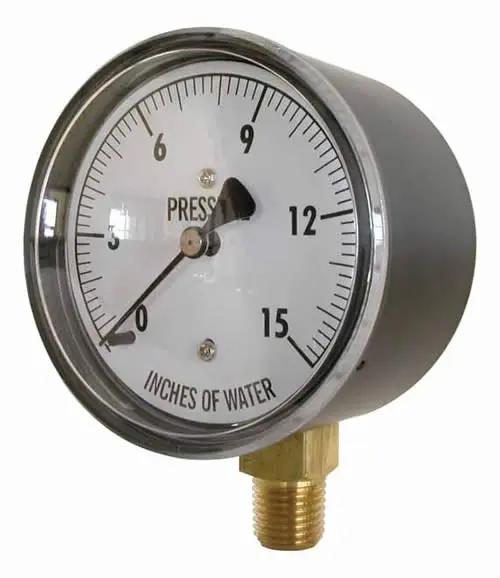

Low Pressure Gauges (60 Series)
Low Pressure Gauges made of painted black steel in 2.5″ and 4″. Bottom Mount only and ¼” Male NPT Ports. These gauges are designed for use with any medium not corrosive to bronze or brass and pressures up to 10 psi.
-
Ammonia System Gauges (80 Series)
Ammonia Gauges have a Black Steel Case in 2.5″ and 4″. Bottom Mount only with ¼” Male NPT Ports. This rugged product employs a 316 Stainless Steel bourdon tube, ASME Grade A movement and a Stainless Steel socket all housed in a corrosive-resistant painted steel case.
10-20 Series![]() |
24-30 Series![]() |
40-41 Series![]() |
54-58 Series![]() |
60-80 Series![]() |
