Compression Fittings
Contact us for more information regarding our compression fitting product options, or request a quote today. UPC is your trusted supplier of pressure connection compression fittings. Need help finding the right part? Connect with our team today to get started.

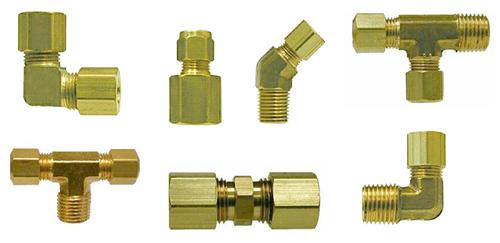

Compression Fitting Product Options
At UPC, all our components are tested for performance and ready to ship, providing reliable solutions for engineers, MRO teams, and system designers. Our brass compression fittings product options include:| Compression Fitting Type | Description | Material Information | Options |
| Straight | Compact, easy-to-install fittings for joining two straight tube runs. Rated up to 500 PSI and –65°F to +250°F for dependable sealing performance. | Compatible with copper, aluminum, and plastic tubing. | Male and female NPT |
| Elbow | Used to connect tubes or valves at a 90° angle. | Forged brass construction ensures strength and corrosion resistance. | Male, female, and union |
| Tee | Split or combine flow in hydraulic and pneumatic systems. | Forged brass construction ensures strength and corrosion resistance. | Branch, run, and union |
| Union | Joins tubing in straight or 90° configurations. | Precision-machined for vibration and high-pressure resistance. | Tee, straight, and union |
| Bulkhead | Allows tubing to pass through walls or panels while maintaining a tight seal. | Made from durable brass for high-pressure, corrosion-resistant use. | Union |
| Nut & Sleeve | Creates a strong mechanical seal without flaring. | Available in multiple OD sizes for seamless integration with all Pressure Connections compression fittings. | Nuts and sleeves |
Compression Fitting Advantages
Engineered for performance and simplicity, brass compression fittings offer a perfect balance of strength, corrosion resistance, and ease of installation. Whether you’re working with air, water, gas, or hydraulic systems, brass compression fittings provide a reliable seal without soldering, welding, or adhesives. Additional benefits include:- Quick, tool-free assembly and reusability
- Leak-proof, metal-to-metal sealing design
- Forged brass construction ensures corrosion resistance and long service life
- Interchangeable across SAE-standard brands (Pressure Connections, Parker, Eaton)
- Suitable for hydraulic, pneumatic, and instrumentation systems
- Performs reliably across wide pressure and temperature ranges
Pressure Connections Compression Fittings Applications
Compression fittings are used in hydraulic, pneumatic, and instrumentation applications and systems that require reliable, reusable seals. UPC’s compression fittings are trusted by OEMs, integrators, and MRO teams for high-performance system design and maintenance.Industries
- Automation & manufacturing
- Aerospace & defense
- HVAC & fluid power systems
- Industrial maintenance & repair operations
Applications
- Instrument panels
- Maintenance retrofits
- Fluid line repairs
- Control systems and manifolds
Compression Fitting Selection Criteria
When selecting the proper compression fitting for your system, consider the following key factors to ensure proper performance and compatibility:- Connection type and size: Verify proper male/female threading and compression port dimensions for tubing or component compatibility.
- Design and configuration: Choose between straight, elbow, tee, or bulkhead fittings based on available space and fluid direction.
- Fitting features: Adjustable or swivel-style fittings make alignment and installation easier in tight spaces.
- Pressure/load rating: Select fittings that meet the required DIN 2353 load class — from light-duty (L) to heavy-duty (S) — depending on system pressure.
Material Compatibility
- Brass: Best for hydraulic and pneumatic systems.
- Stainless steel: Ideal for corrosive or high-strength environments.
- Plastic: Lightweight, cost-effective choice for low-pressure applications.
Compression Fitting FAQs
What are compression fittings used for?
They connect tubing or piping without welding or threading, making them ideal for modular, maintenance-friendly systems.How do compression fittings work?
The ferrule compresses around the tubing as the nut tightens, forming a secure, leak-free metal-to-metal seal that withstands pressure and vibration.Are brass compression fittings suitable for hydraulic systems?
Yes — brass compression fittings are widely used in hydraulic and pneumatic systems for their corrosion resistance, temperature tolerance, and ease of assembly.Why Choose UPC for Your Compression Fitting Needs?
In the market for high-quality plastic, stainless steel, or brass compression fittings? UPC has you covered. Reasons to choose UPC include:- Trusted Partnerships: UPC partners with Pressure Connections to provide high-quality brass compression fittings engineered for lasting performance and precision.
- Extensive Inventory: Offers a complete selection of straight, elbow, tee, bulkhead, and union compression fittings to support a wide range of hydraulic and pneumatic systems.
- Reliable Quality: Each fitting is precision-machined for leak-free sealing, corrosion resistance, and consistent performance under pressure.
- Fast, Dependable Service: Large in-stock inventory ensures short lead times and quick order fulfillment for OEMs, MROs, and system integrators.
- Expert Technical Support: UPC’s knowledgeable team guides customers to help identify the correct fitting type, size, and material for their specific applications.
- One-Stop Source: In addition to compression fittings, UPC offers a full range of hydraulic, pneumatic, and electrical components for complete system solutions.
