Pipe Elbows

Pipe Elbows

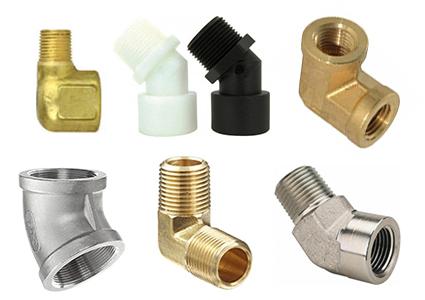

Pipe elbows are a specialized hydraulic component that is used to connect straight pipe or tubing sections. More specifically, pipe elbows are installed between two lengths of pipe to allow for a change of direction. These pneumatic components may be machined, threaded, or socketed. Depending on your application there are several different styles of pipe elbows that can be used.
  • Female pipe elbows – This hydraulic component connects fractional tubes to male NPT threads.
  • Male pipe elbows – This pneumatic component connects fractional tubes to female tapered pipe threads.
  • Street pipe elbows – This type of elbow has an internal thread at one end and an external thread at the other. It is intended to join a piece of pipe and another pneumatic fitting at an angle.


Pipe Elbow Applications

 Male and female pipe elbows have various applications including:
  • Hydraulic systems
  • Pneumatic systems
  • Pharmaceutical fittings
  • Air brake fittings
  • Gas fittings
  • Refrigeration
Street elbow applications include:
  • Water supply
  • Drainage
  • Sewer vents
  • Central vacuum systems
  • Compressed air & gas lines
  • HVAC
  • Sump pump drains

Materials

There are several different types of material that are used in the manufacturing of pipe elbows. Some of which include:
  • Copper
  • Iron
  • Cast iron
  • Brass
  • Nickel
  • Aluminum
  • Bronze
  • Stainless Steel
  • Plastic
Contact Universal Power Conversion today for more information on our inventory of pipe elbows and pneumatic components.
