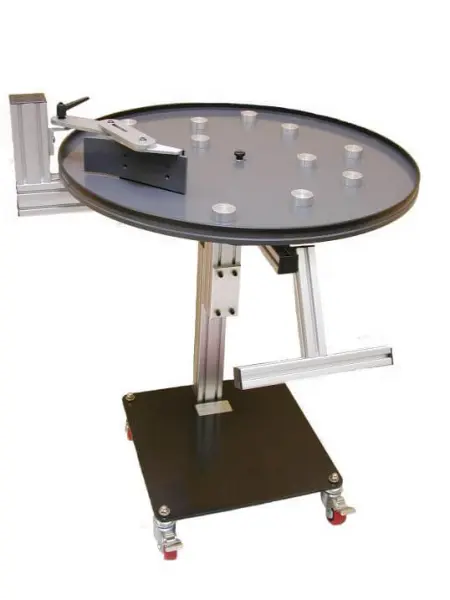

32-inch RTA

RTA-02-602pic-reduced
Compact Productivity Solution for Sorting & Unattended Operation

Mini-Mover Rotary Table Accumulators (RTAs) were originally designed for the metalworking marketplace to promote unattended machine operation and separation of sensitive parts after machining.

Our RTA units are well suited for various applications in assembly and packaging, such as cycle tolerance inspection, surge table on production lines and staging for manual or pick & place case packing.

Available Options Include

Custom table sizes & materials; a variety of adjustable table heights; and additional fixed and variable rotation speeds.

Operation

Parts are delivered to table via part chute or conveyor. Parts are stopped by in-feed cushion. As table rotates, parts are directed away from part drop area by the diverter fence and accumulate at the table center.

Product Specifications

  • Weight: 120 pounds
  • Table Diameter: 32 inches
  • Load Capacity: 100 pounds
  • Roller Base: 19.5 inches square w/ heavy-duty locking casters
  • Part Stop Cushion: Height and angle adjustable
  • Diverter Fence: Height and angle adjustable

Table Height (Adjustable)

  • Option A: 20″ to 28″
  • Option B: 28″ to 36″
  • Option C: 36″ to 42″

Table Rotation Options

  • Fixed Speed: 1 rpm or 3 rpm
  • Variable Speed: 1 through 3 rpm
