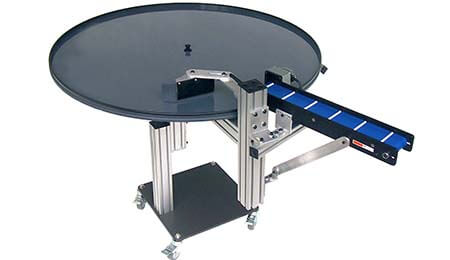

Uni-Mate 80-048

uni-mate-048
Overnight Operation with Indexing to Protect Sensitive Parts

The Uni-Mate® 80-048 has our largest-sized tabletop of 48 inches in diameter. Its collection capacity is great for overnight runs, since the indexing feature can keep sensitive parts separated.

Conveyor Features

  • Choice of 4 conveyor dimensions:
    — 4″ x 36″
    — 6″ x 36″
    — 4″ x 48″
    — 6″ x 48″
  • 2.50″ high conveyor frame with integral 0.70″ high side guides
  • Integral left-side mount gearmotor, 1/18 hp, 115/60 VAC 3 fpm fixed speed
  • Motor/belt can stop-start in synch with table on a single cycle timer
  • 1.25″ dia. pulleys, crowned aluminum with double-sealed long-life bearings
  • Blue chemical & cut resistant belt with H0 (0.16″ high) cleats, 6″ spacing
  • Up to 45-degree adjustment range on connection to rotary table

Table Features

  • 48″ diameter PVC top
  • 10.5″ – 36″ height adjustment range
  • Gearmotor 1/12 hp, 60W BLDC
  • 1-3 RPM variable-speed rotation
  • Cycle /index timer
  • Locking steel casters
  • Diverter arm & cushion
  • 19.5″ square steel base
  • Load capacity: 100 lbs
  • Unit weight: 145 lbs
