Linear V-Track Guides

Universal Power Conversion’s SMS linear V-track guides are designed to be used with linear guide wheels for controlled, wheel-based linear motion systems, offering precise linear movement, exceptional load capacity, and long-term reliability. Linear V-track guide systems are ideal for equipment that demands accuracy without complexity.
Whether it’s linear guidance for industrial equipment and machinery, guide wheel systems, or automated equipment, UPC’s linear V-tracks provide the controlled, wheel-based linear motion you need. Contact us or request a quote today.

What is a Linear V-Track Guide?

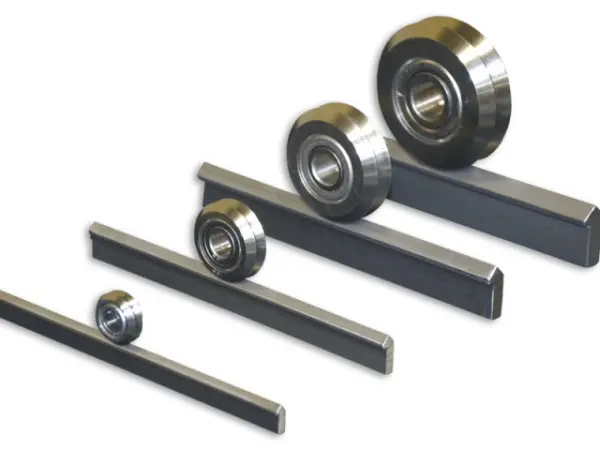

Linear V-track guides are rolling motion systems that use V-groove wheels running on hardened steel tracks. The V-shaped profile naturally centers the wheels on the track, creating smooth, stable movement with excellent resistance to misalignment and side loads.
These systems are commonly configured with single- or dual-track precision-ground wheels to support both light-duty and heavy-load applications.

Linear V-Track Guide Applications

SMS linear V-track guides are used for a wide range of industrial equipment and machinery, where guide wheel systems are mounted to frames, panels, or structural members. UPC’s linear V-tracks are designed to be used with linear guide wheels for controlled, wheel-based linear motion. Specific applications include:

Automation and robotic systems
Material handling and conveyor systems
Machine tool positioning and alignment
Packaging and inspection equipment
Heavy doors, gates, and transfer systems

Easy Installation & Flexible Design

V-track systems are known for straightforward installation and adaptability. Tracks can be mounted to existing structures, while adjustable wheels allow fine-tuning during setup. This flexibility simplifies system design and reduces downtime during installation or maintenance.

Choosing the Linear V-Track Guide that Meets Your Specifications

When selecting a V-track guide system, consider:

Load capacity and distribution
Travel length and required accuracy
Environmental conditions (dust, debris, moisture)
Mounting surface and alignment tolerance
Maintenance access and lubrication needs

Selecting the right configuration ensures optimal performance and long-term reliability.

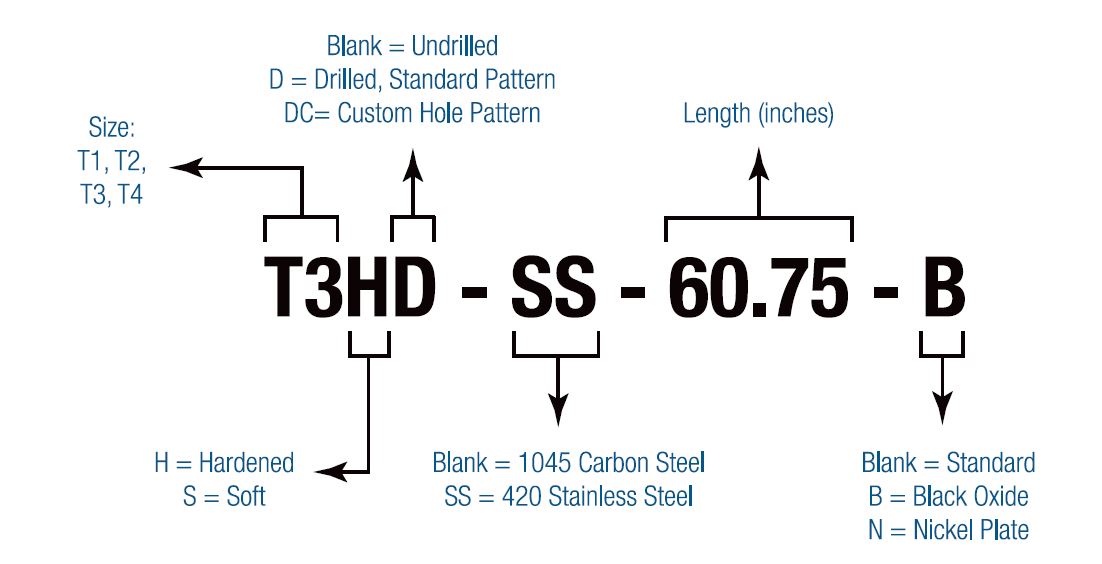

Linear V-Track Customization & Ordering Options

UPC offers linear V-tracks for guide wheels in the following standard and customizable options:

Cut to length per order
Optional pre-drilling
Standard, undrilled, or custom hole patterns

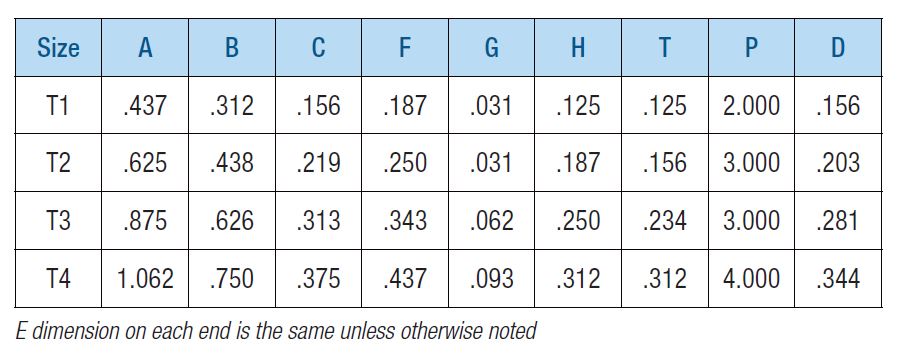

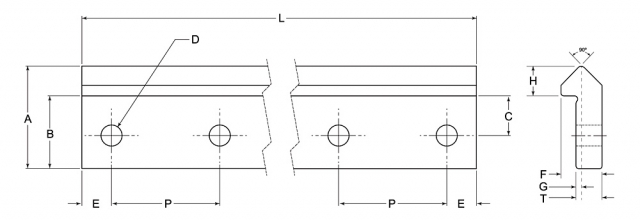

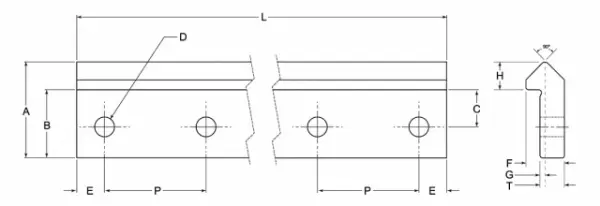

Please note: The dimensional drawings, size tables, and product catalog PDF are provided on this page for complete specification comparison and matching.

Products Used with Linear V-Track Guides

Products used with our SMS linear V-track guides include:
