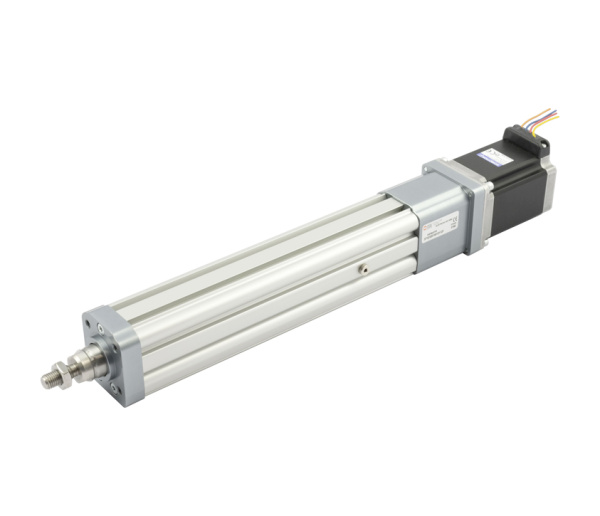

Electric Cylinders with ISO 15552 Mounting Interface

Precision Electric Linear Actuators for Industrial Automation

ISO 15552 Electric Cylinders with Pneumatic Compatibility

Universal Power Conversion (UPC) offers electric cylinders with ISO 15552 mounting interfaces, designed to provide precise, repeatable linear motion while maintaining full compatibility with standard pneumatic cylinder accessories. These electric actuators allow manufacturers to transition from pneumatic to electric motion control without redesigning existing mechanical layouts.

Engineered for accuracy, rigidity, and long service life, these electric cylinders are well suited for applications requiring controlled positioning, high load capacity, and dependable performance in demanding industrial environments.

Explore ISO 15552 Electric Cylinders

UPC supplies electric cylinders that combine the familiar form factor of pneumatic cylinders with the performance advantages of electric actuation. With multiple motor options, mounting configurations, and anti-rotation versions available, these cylinders can be tailored to meet a wide range of automation requirements.

Our automation specialists are available to help you select the correct motor type, drive system, and mounting accessories for your application.

Electric Cylinder Overview

These electric cylinders use a hardened and tempered screw paired with a ball recirculation nut, ensuring high precision, smooth motion, and long-term reliability. The piston rod is engineered with an increased outer diameter and wall thickness, providing exceptional rigidity and resistance to radial and peak loads.

An integrated screw and nut lubrication system ensures consistent performance and extended service life, even in high-duty-cycle applications.

A version with a built-in anti-rotation system is available. This design uses two opposing pads that slide along longitudinal grooves machined into the cylinder sleeve. These grooves also accommodate sensors, while a magnet integrated into the piston enables accurate position detection.

Key Features & Benefits

• ISO 15552 mounting interface for compatibility with pneumatic accessories

• Ball screw with recirculating nut for precise, reliable motion

• Enhanced piston rod rigidity for high radial and peak load resistance

• Optional built-in anti-rotation system

• Longitudinal grooves for sensor integration with magnetic piston

• Integrated lubrication system for extended service life

• Suitable for aluminium or steel mounting accessories in high-stress applications

Motor & Drive Options

These electric cylinders can be equipped with motors selected from an optimized range, including:

• Stepper motors

• Brushless motors

Available drive configurations include:

• In-line motor versions, where the motor shaft is directly coupled to the screw

• Geared motor versions, using pulleys and a toothed belt to transmit motion

Compatible motor drives are also available to ensure optimal control and performance. Upon request, custom flanges and adaptor couplings can be manufactured to accommodate customer-specified motor brands.

Applications for ISO 15552 Electric Cylinders

These electric cylinders are ideal for automation systems requiring precision linear motion and robust mechanical performance, including:

• Assembly and production lines

• Packaging and material handling systems

• Industrial tooling and fixtures

• Pick-and-place applications

• Pneumatic-to-electric retrofit projects

Important Application Note

A piston rod anti-rotation system must be used. If the piston rod is not rigidly fixed to an external component, flange, or other device that prevents rotation, the cylinder must be specified in the anti-rotation version to ensure proper operation and prevent mechanical damage.

Why Choose ISO 15552 Electric Cylinders from UPC?

Easy Integration: ISO-standard mounting allows direct replacement of pneumatic cylinders
High Precision: Ball screw technology ensures accurate, repeatable motion
Flexible Configurations: Multiple motor, drive, and anti-rotation options
Long Service Life: Rigid rod design and integrated lubrication reduce wear
Expert Support: UPC specialists help configure the right solution for your system

Get Started with ISO 15552 Electric Cylinders

Universal Power Conversion is your source for ISO 15552 electric cylinders and complete motion control solutions. Contact a UPC expert or request a quote to find the right electric actuator for your application.
