DOT Push-to-Connect Bulkhead Fittings
Secure, DOT-Compliant Through-Panel Air Brake Connections
Bulkhead DOT fittings are specialized air brake fittings designed to route pneumatic tubing cleanly and securely through panels, bulkheads, and structural dividers in commercial vehicles, trailers, and air brake systems. By mounting directly through a drilled hole in a panel surface, bulkhead DOT fittings create a fixed, vibration-resistant connection point that keeps air lines organized, protected, and properly routed, without the stress and abrasion risk that comes from unsupported tubing passing freely through a panel opening.Universal Power Conversion supplies a comprehensive range of DOT components, including air brake bulkhead fittings and push-to-connect bulkhead fittings, engineered to meet the Department of Transportation compliance requirements governing commercial vehicle air brake system components. Contact us for more information, or request a quote today.
What Are Bulkhead DOT Fittings?
Bulkhead DOT fittings are a specific configuration of DOT-compliant push to connect fitting designed for panel-mount installation. Unlike standard inline fittings that connect two sections of tubing in an open run, bulkhead fittings pass through a panel opening. They are secured with a jam nut on the opposite side, creating a fixed, panel-anchored connection point on both faces of the divider.This through-panel mounting capability makes DOT air brake bulkhead fittings the correct solution when:
- Air brake tubing must transition from one compartment or zone to another through a structural panel
- A fixed, supported connection point is required at a panel surface to prevent tubing movement and vibration fatigue
- System organization and clean routing are priorities in cab, chassis, or trailer air system design
- Protection of tubing at panel penetration points is required to prevent abrasion and chafing damage
As push-to-connect bulkhead fittings, the Universal Power Conversion lineup uses the same tool-free push-to-connect mechanism as standard DOT air brake fittings, allowing tubing to be inserted and locked in a single motion without additional tools, fittings, or thread sealant.
When to Use Bulkhead DOT Fittings
Understanding when bulkhead fittings are the right specification choice helps fleet maintenance teams, OEM designers, and trailer builders avoid common air system routing and connection problems:Through-Panel Air Line Routing
Whenever an air brake line must pass through a cab wall, trailer bulkhead, chassis rail, or any structural panel, a bulkhead DOT fitting provides a secure, protected penetration point, eliminating abrasion and fatigue risks associated with unprotected tubing passing through a raw panel hole.Compartment & System Separation
In air brake system designs where a structural divider separates different circuits or pressure zones, bulkhead fittings provide clean, organized connection points at the separation boundary, supporting logical system layout and simplified maintenance access.Fixed Connection Points for Vibration Management
Commercial vehicles and trailers subject air lines to continuous vibration and dynamic loading. Bulkhead DOT fittings anchor tubing at panel surfaces, reducing unsupported span length and the vibration-induced fatigue that leads to premature fitting and tubing failures.OEM System Design & Trailer Manufacturing
OEM truck and trailer manufacturers specify DOT air brake bulkhead fittings at panel penetration points throughout their air systems, establishing clean, repeatable connection points that simplify assembly, inspection, and field service.Bulkhead DOT Fitting Options

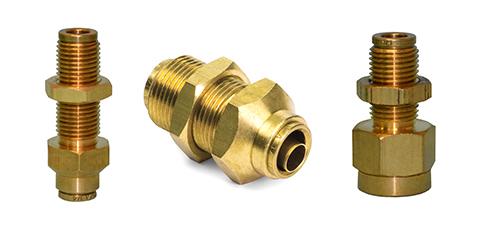

Universal Power Conversion carries DOT air brake bulkhead fittings in the configurations most commonly specified in commercial vehicle and trailer air brake applications:Bulkhead Union Fittings
The most common bulkhead configuration is a straight-through panel fitting that accepts push-to-connect tubing on both faces of the panel. Bulkhead union fittings are used wherever an air line transitions from one side of a panel to the other in a straight, inline run.Best for: Standard through-panel air line routing in cab walls, trailer bulkheads, and chassis panels.
Bulkhead Male Fittings
Bulkhead male fittings feature a push-to-connect inlet on one side and a male-threaded outlet on the opposite side, allowing a panel-mounted air line to connect directly to a ported component, valve, or manifold on the opposite side of the panel without an additional adapter.Best for: Connecting through-panel air lines directly to threaded ports on valves, reservoirs, or chassis-mounted components.
Bulkhead Female Fittings
Bulkhead female fittings provide a push-to-connect inlet on one panel face and a female-threaded port on the opposite side, supporting connections to male-threaded air system components and instrumentation across the panel boundary.Best for: Through-panel connections to male-threaded air components, gauges, and system instrumentation.
Reducer Bulkhead Fittings
Reducer configurations accept different tubing sizes on each panel face, allowing a through-panel connection to also serve as a tubing size transition point, reducing the need for an additional inline reducer fitting in the air circuit.Best for: Applications requiring both a panel penetration and a tubing size change at the same point in the system.
Push to Connect Bulkhead DOT Fitting Advantages
Fleet maintenance teams, OEM manufacturers, and trailer builders specify Universal Power Conversion's push-to-connect bulkhead fittings for a consistent combination of installation efficiency, system reliability, and DOT compliance:- DOT Compliance
- Tool-Free Push to Connect Installation
- Vibration Resistance
- Secure, Leak-Resistant Connections
- Clean, Organized System Routing
- Ease of Tubing Release & Serviceability
DOT Bulkhead Fitting Applications
DOT air brake bulkhead fittings from Universal Power Conversion are specified across the commercial vehicle, trailer, and industrial pneumatic markets:- Commercial Trucks & Tractors
- Trailers & Semi-Trailers
- Transit & Bus
- Specialty & Work Trucks
- OEM Truck & Trailer Manufacturing
- Fleet Maintenance & MRO
Tubing Compatibility & Sizing
Universal Power Conversion's push-to-connect bulkhead DOT fittings are compatible with the DOT-approved nylon and polyurethane air brake tubing sizes most commonly used in commercial vehicle air brake system applications:- 1/4 inch — Common in instrument and control circuit applications
- 3/8 inch — Widely used in secondary air circuits and smaller bore applications
- 1/2 inch — Standard in primary air supply and delivery circuits
- 5/8 inch — Used in larger flow capacity air supply applications
- Additional sizes available — Contact Universal Power Conversion to confirm availability for specific tubing size requirements
Correct tubing size selection ensures positive push-to-connect engagement, reliable seal performance, and DOT compliance throughout the air brake circuit.
